Hydraulic Super Paper Plate Machine Model AD-500
Instruction:
Hydraulic Super Paper Plate Machine Model AD-500 is designed against the customer requirement. It is used to make super size and heavy paper material plate/tray.
The machine size and the oil hydraulic pressure are designed against the plate size, plate pattern shape, paper thickness, etc.

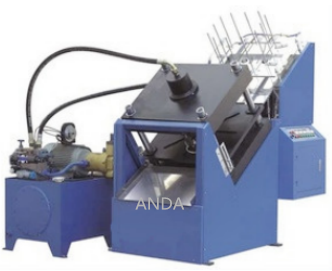

The Above photo is oil pressure machine (It is used to make paper thickness up to 1600gsm). Against the paper thickness, can select the hydraulic pressure, 20Ton, 30Ton, 50Ton, etc.
Samples:
Technical specification:
Dish size | Super Size (mold exchangeable) |
Raw material | Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other; |
Suitable paper weight | Against the buyer requirement; |
Air flow | 0.6m3/min (need to buy Air compressor) |
Electrical Supply | 220V or 380V 50Hz |
Total power | 9KW |
Rated Productivity | 8--12 piece/minute (only one working station) |
Weight | 1500kg |
Air pressure | ＞0.8mpa |
Appearance size | 1880 x 1140 x 1980 mm, 1140 x 980 x 1210 mm |
