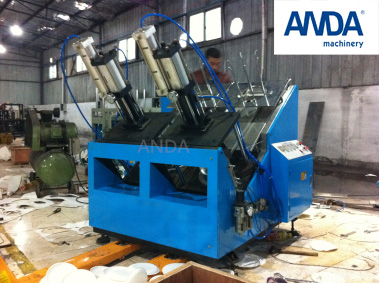

Automatic Paper Plate Machine Model AD-400
Instruction:
Automatic Paper Plate Machine Model AD-400 is devoloped and designed as the requirement of market. It has assembled the pneumatic and mechanism technoligies, which makes it different from the conventional auto one that works slowly, with lower safety performance, it is easy for operation and maintenance.
This Machine adopts high efficient pressure cylinder. The max pressure is up to5T,compared with oil pressure, it has advantages of high speed, environment protection, and humanism design.
AD-400 High Speed Auto Paper Plate is widely applied to produce paper plate or aluminium foil plate, round or square plate with different specification and shapes.
Samples:
Technical specification:
Dish size | 5Inch-10Inch (mold exchangeable) |
Row material | 100-500g/m2 paper/paperboard,Alumium foil coated paper, One side PE coatedpaper or other |
Air flow | 0.3m3/min |
Electrical Supply | 220V（380V） 50HZ |
Total power | 3.0KW |
Rated Productivity | 65-80pcs/min (two working position) |
Air pressure | 0.8Mpa |
Weight | 600KG |
Package size | 1430(L)*1600(W)*1900(H) mm |
