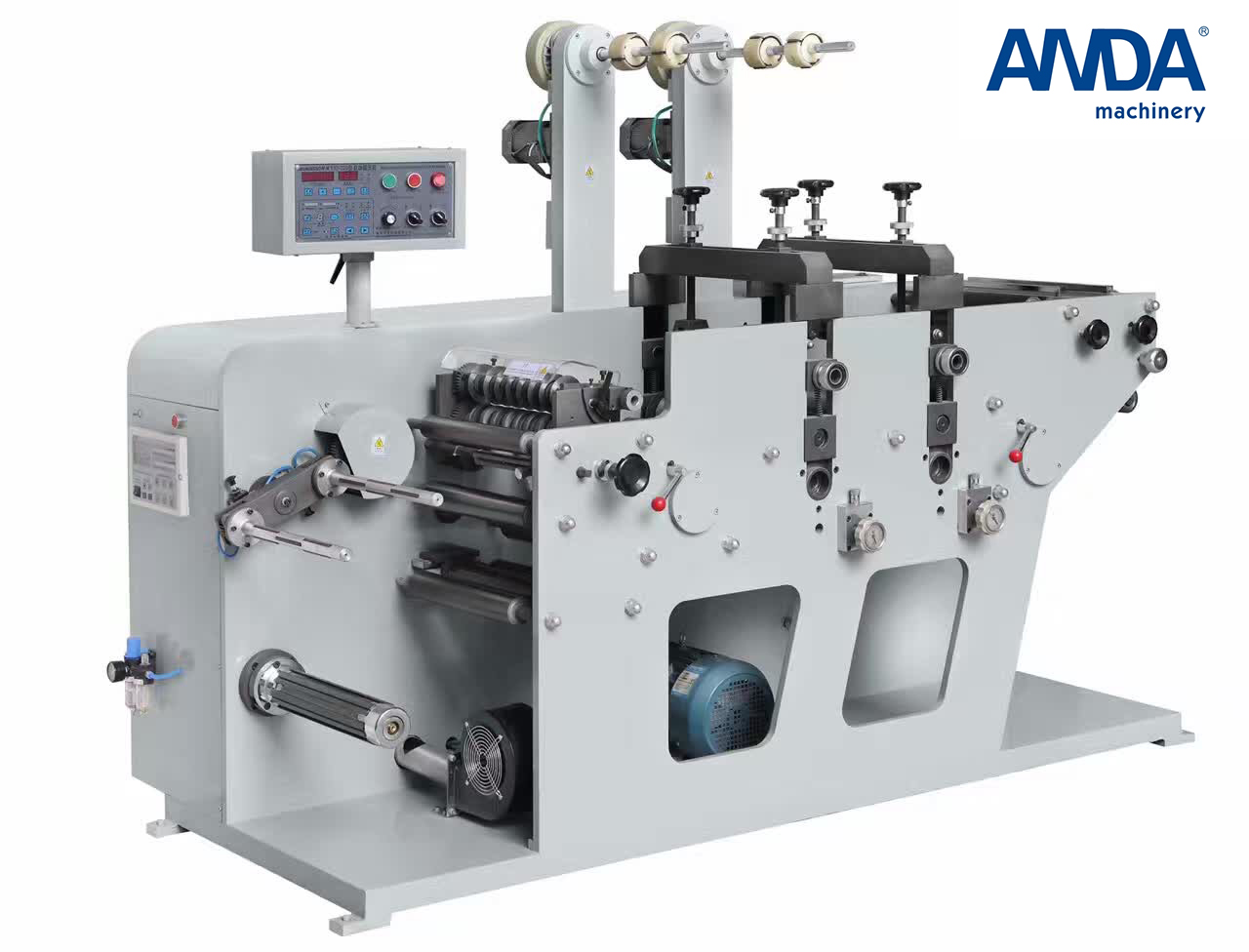

Label Slitter with Rotary Die Cutter Model SWD320B
Introduction:
The Model SWD320B two seater label slitter with rotary die cutter adds one die cutting station on the basic of the model SWD320. Cut back, tangent (die cutting and imaginary line) can be finished in one process, which can greatly improve the production efficiency, reduce the cutting die cost and improve the enterprise benefit.
Parameter:
Model | SWD320B |
Max. Die cutting Width | 310mm |
Max. Die-cutting Length | 600mm |
Max. web width | 320mm |
Positioning Precision | ±0.1mm |
Max. diameter of feeding | 600mm |
Main Motor Power | 5.5kw |
Machine weight | 2600kg |
Machine dimension | 3700x1200x1600mm |
