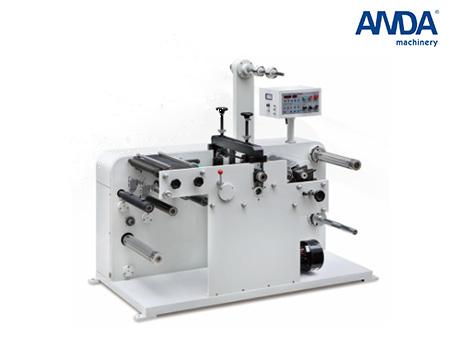

Label Slitter with Rotary Die Cutter Model SWD320
Introduction:
The Model SWD320 label slitter with rotary die cutter is a new product, it equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels, die-cutting, laminating(option), slitting can be finished in one process. It has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
Parameter:
Model | SWD320 |
Slitting speed | 100m/min |
Die-cutting speed | 100m/min |
Die-cutting Repeat Length | 177-476mm |
Max. web width | 320mm |
Max. diameter of unwinding | 500mm |
Max. diameter of rewinding | 480mm |
Machine weight | 600kg |
Machine dimension | 1600x900x1300mm |
