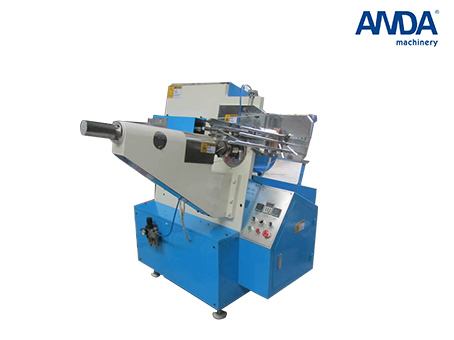

Automatic Cake Tray Forming Machine Model JDGT
Instruction:
Automatic Cake Tray Forming Machine Model JDGT use machine hand to clip paper, feeding paper, separate paper, punching, discharge etc.This model can make different size of cake tray through changing mould. Simple structure, inverter, auto temperature controller, easy to operate, high efficient, stable running.

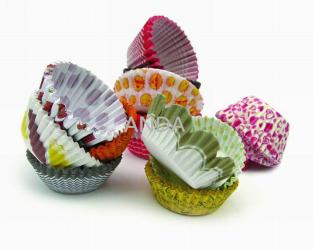

Sample:
Technical specification:
Paper size | φ55-φ130mm |
Raw material | greaseproof paper 30-40gsm Anti-oil paper(Greaseproof paper), aluminium foil paper or other |
Capacity | 15-20pcs/time 20-40times/min. |
Power source | 380V / 50HZ ( it can be changed if customer require) |
Total power | 2.5KW |
Air source | working pressure 0.6MPa air volume 0.3m3/min |
Weight | 500kg |
Package Size | 1500×1300×1400mm |
